豆豆送我一台OECT

想这台OECT想了2周,快忍不住之际,元宵节豆豆送了我一台....真是好人啊,发个好人卡.
2025年2月份价格在 90左右的包邮价,可以插一个2.5的sata薄盘.

OECT是网心云用来跑PCDN的矿机, 4+8G+sata(2.5寸)+千兆.

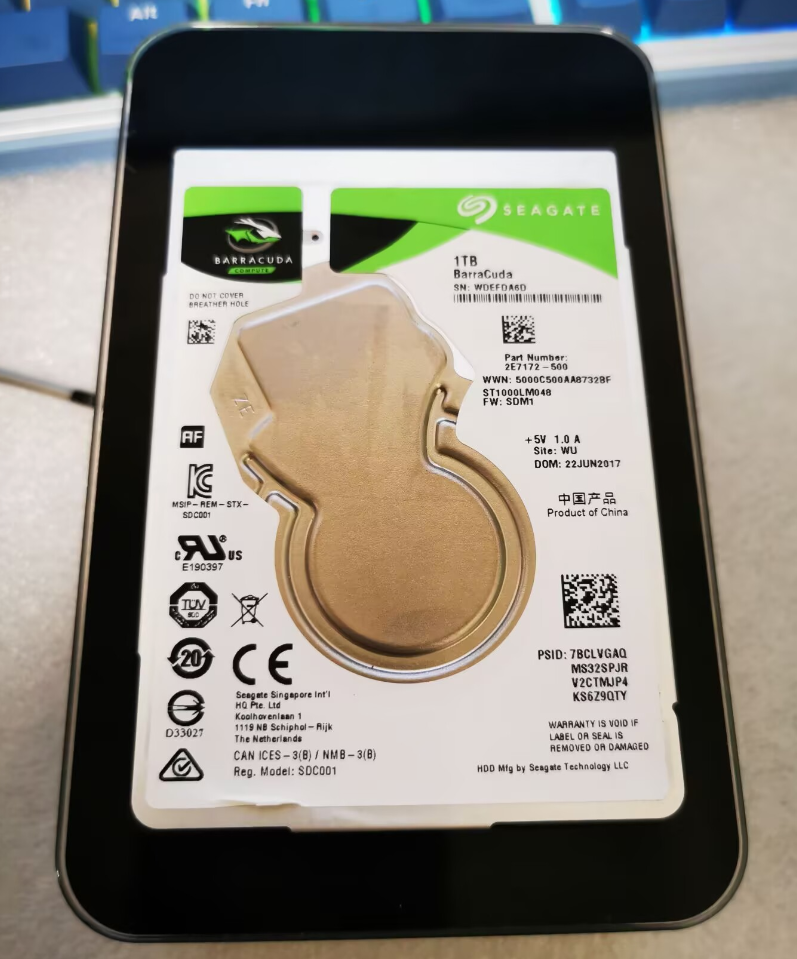

就一个2.5寸盘大一点点,厚的话还满厚的,有2-3本书那么厚...



参数

处理器RK3566: 4核CPU 和jptv一样咧.

内存: 4G(OECT) / 2G(OEC)

存储: 8G

1×USB 3.0

1×SATA

1×千兆网口

功耗

10V0.13A 也就是,1.3瓦(不含适配器损耗),未接硬盘.

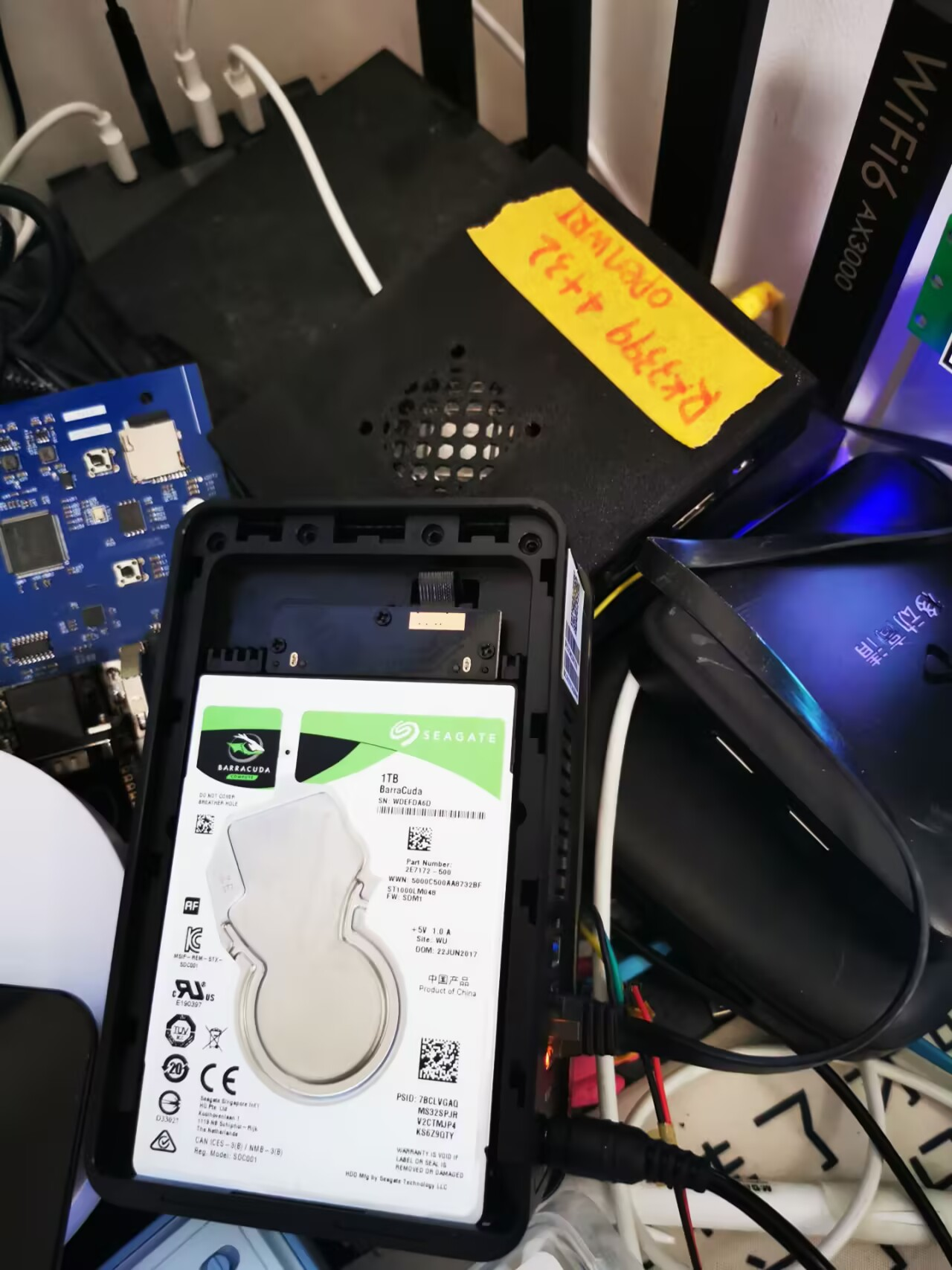

接一个机械硬盘,功耗在1.8瓦左右.

coremark

28048

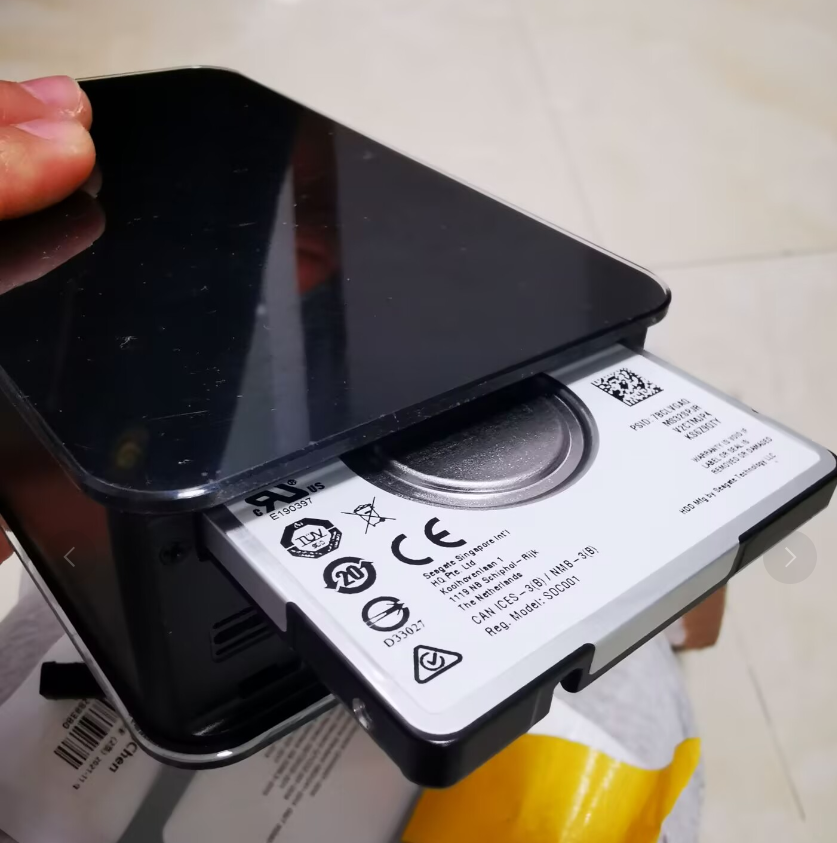

收货拍照


下载固件

https://as.love0997.top/wxy-oect

看到这个页面说明你来晚了，直链因访问量太大，造成我网盘账号限速了，继续下去会被封号，所以改为提供天翼云盘分享吧，天翼云盘非会员下载不限速的
想看教程的就看上面的PDF文件，不想看的直接点击下面的网盘链接下载： https://cloud.189.cn/web/share?code=Urmmq2AneU3i （访问码：95nz）

开始刷机

老套路,RK的需要短接进入Maskrom模式,该模式下,通过USB线把电脑上的uboot传到内存,然后运行,再用Uboot来写emmc等.
没有进入Maskrom的按键,所以要拆机.

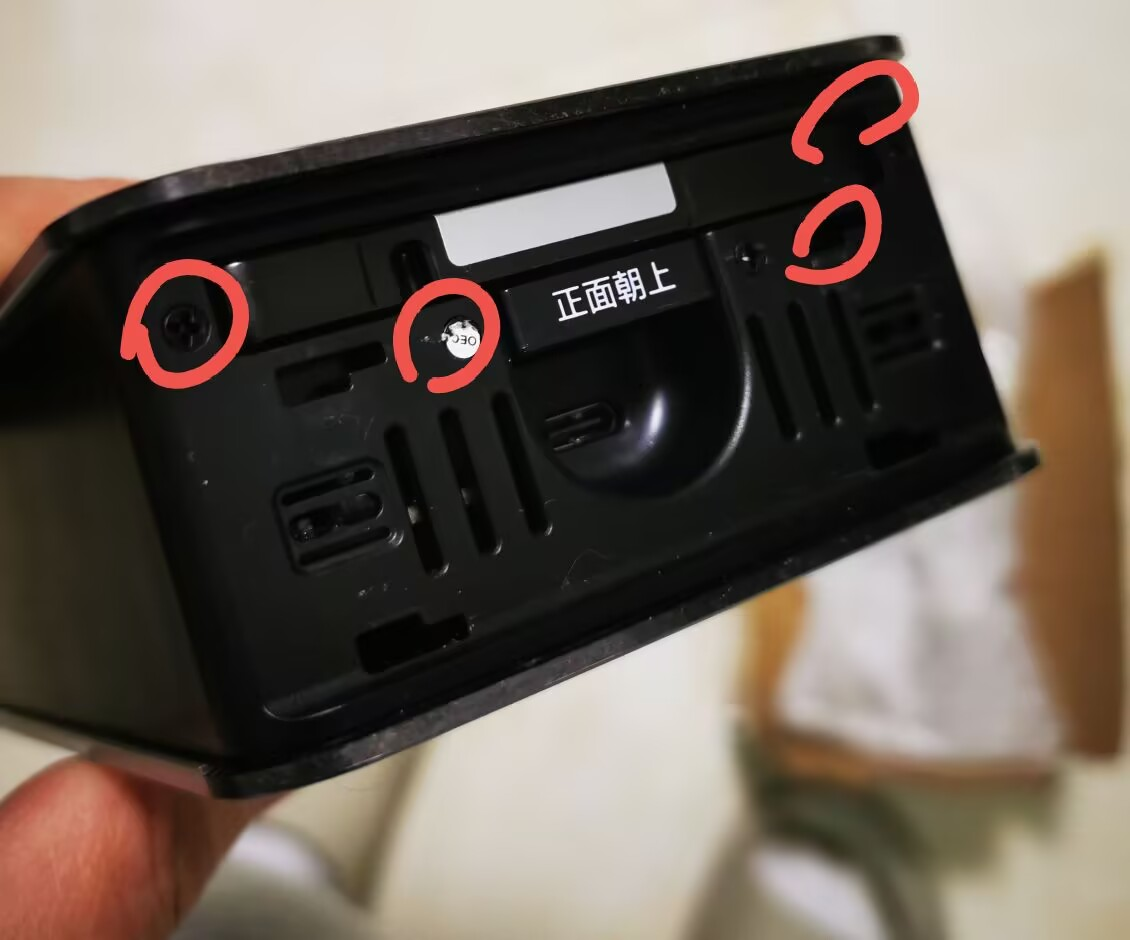

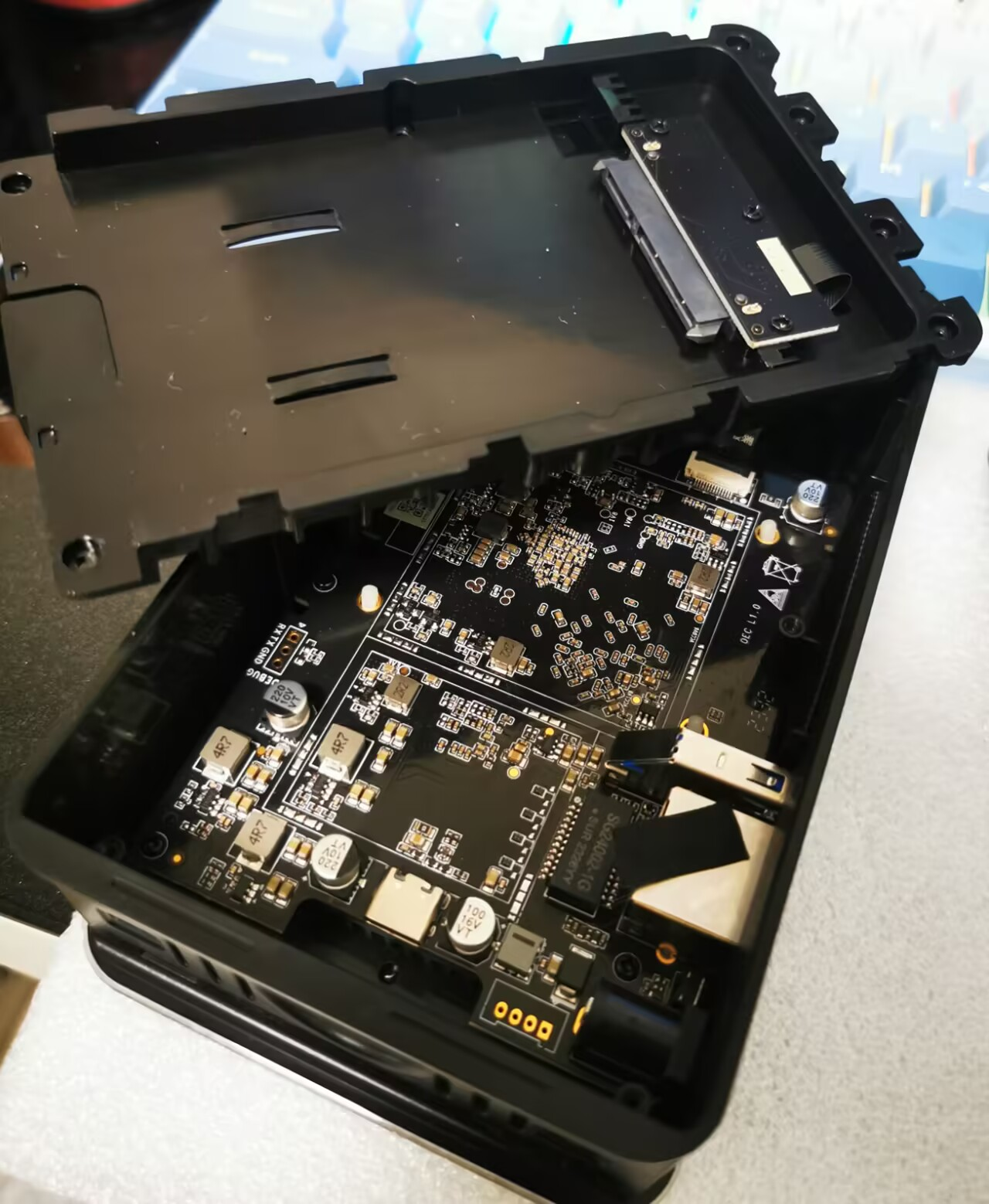

拆机

  1. 推开硬盘侧盖
  2. 拆开4颗小螺丝
  3. 顶盖向插入硬盘方向推,拿起来.

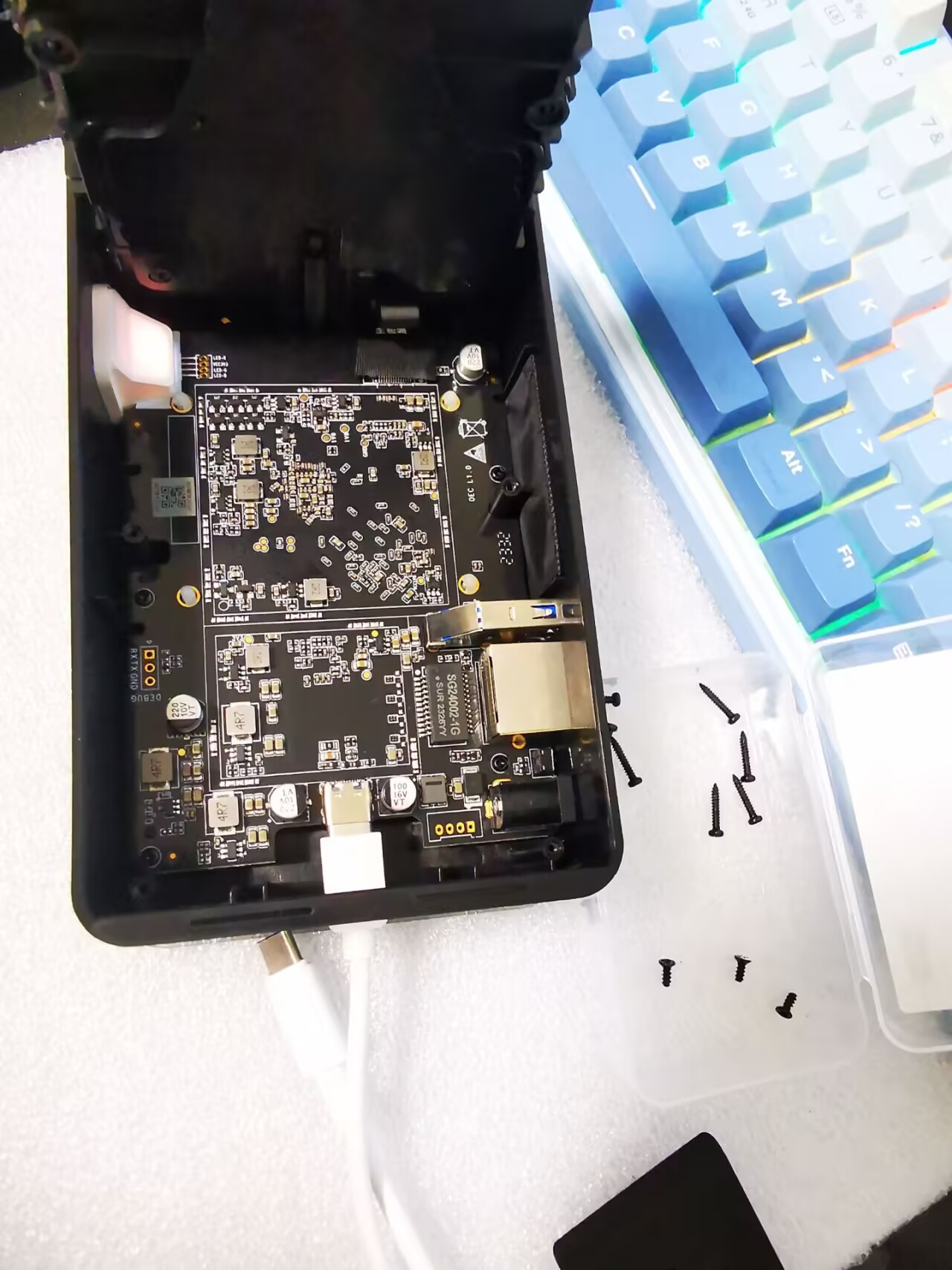

  4. 拆开 所有螺丝, 就可以拿起硬盘盒

注意: 硬盘盒和主板有排线连接,主要轻轻的,别动作太大.

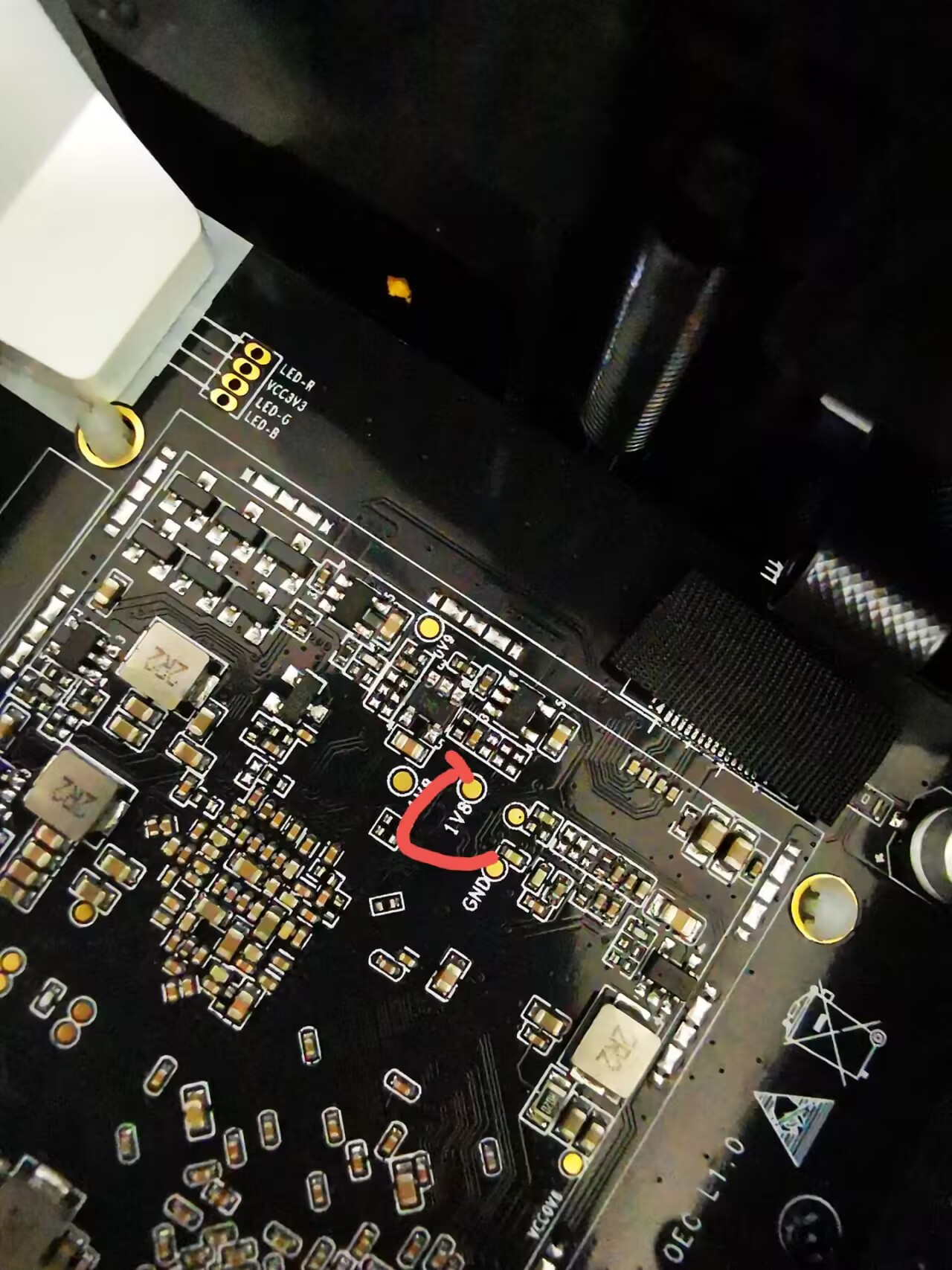

短接进入Maskrom

断开所有线,然后用镊子/回形针等 短接下面2个触点 ,然后通过type-c连到电脑

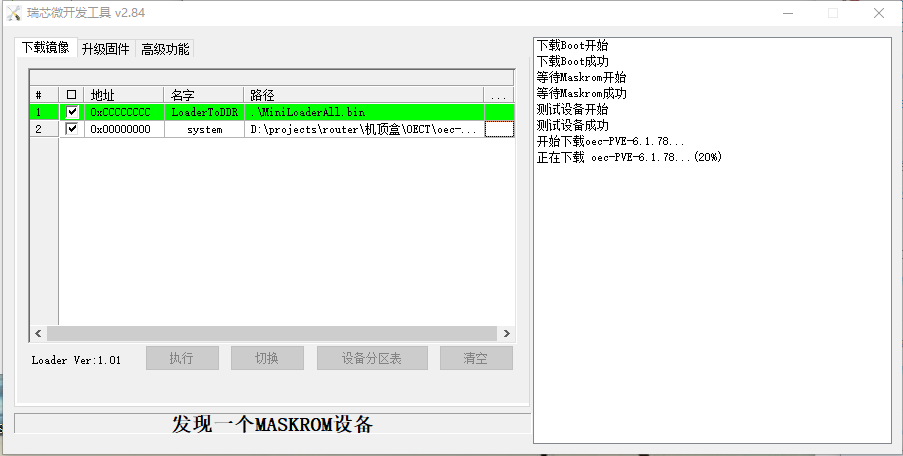

刷机

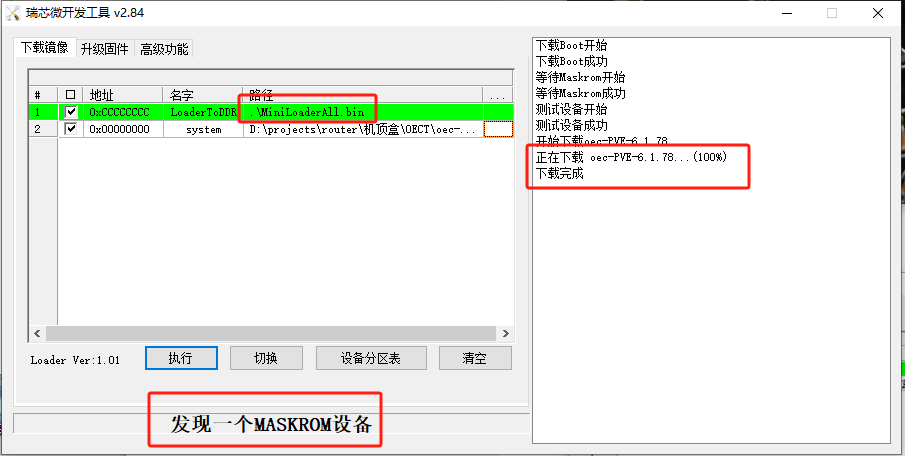

刷机完成


Openwrt

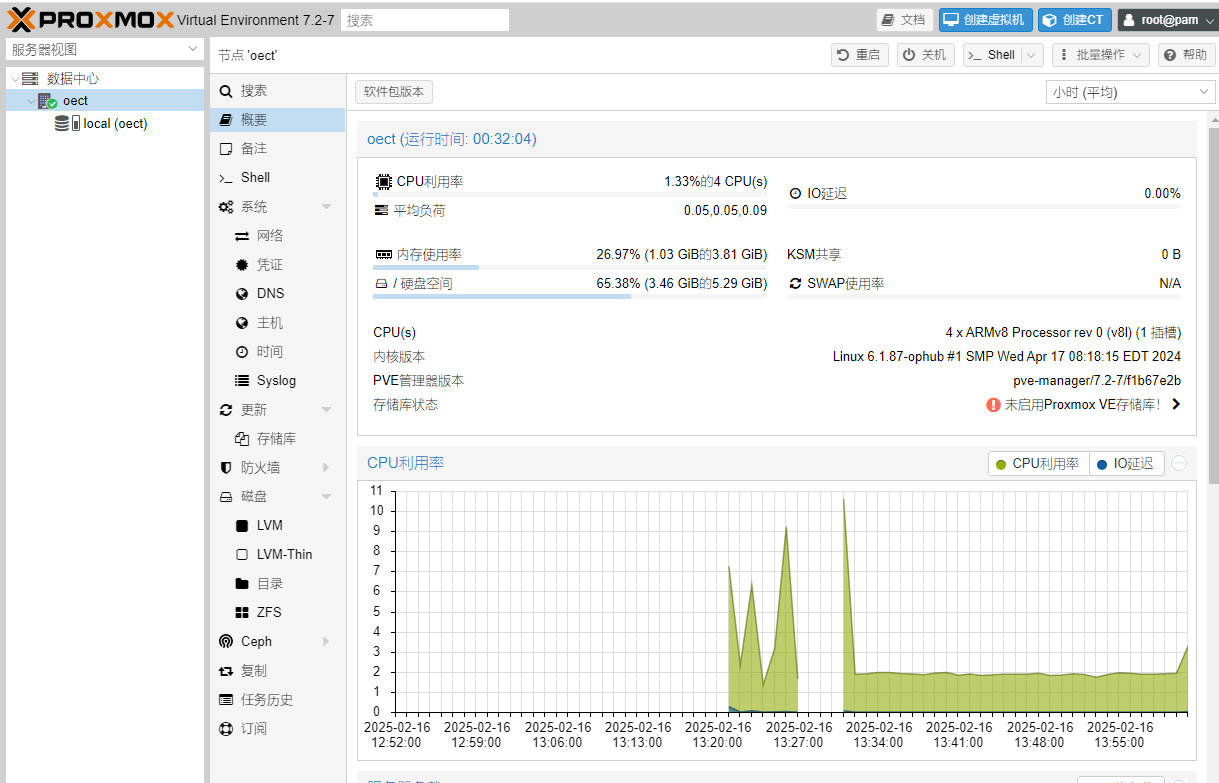

PVE刷机

pve刷机后,ip是这个 https://192.168.1.19:8006/

电脑设置一个固定IP到 `192.168.1.66',然后通过上面地址访问.

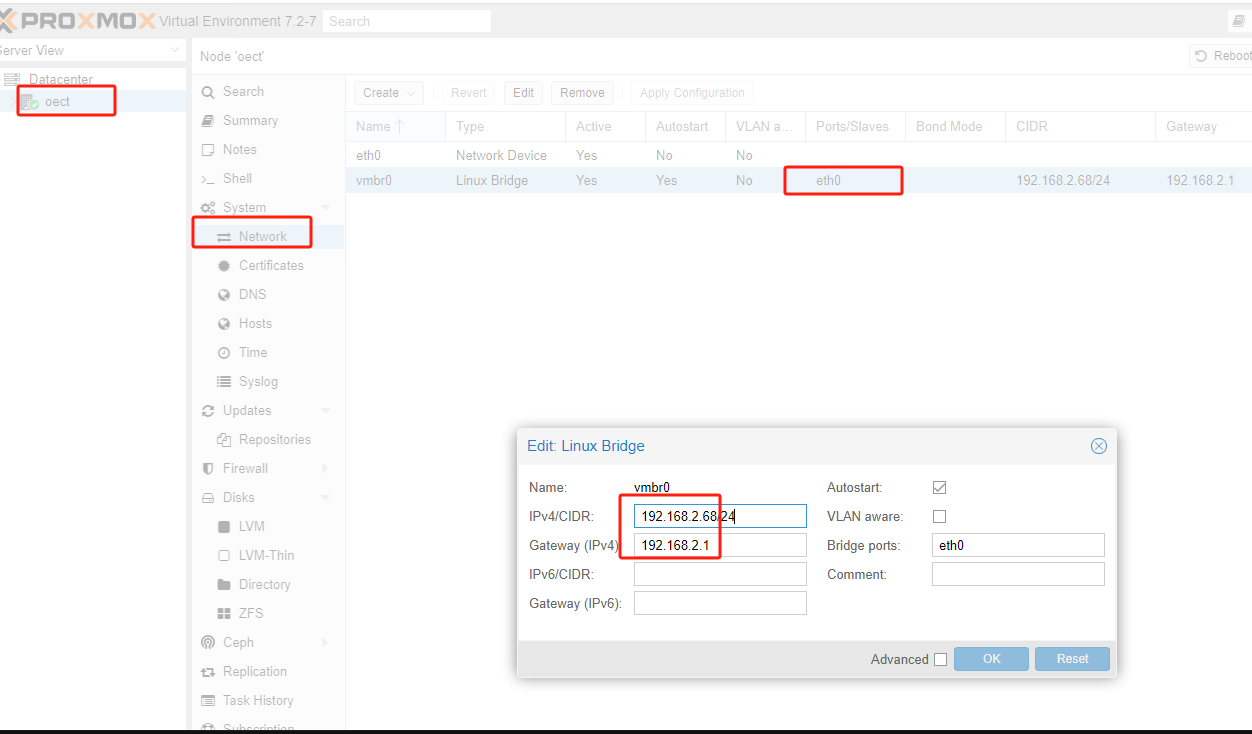

修改IP

把ip网段修改到你自己的网段, https://192.168.2.68:8006/ 记得要通过 https访问.


就这样了.


TTL开机信息

TTL波特率是 1500000 , TX和RX不用交换,设计pcb的人是让你直接把你的TX插他TX洞里.

DDR Version V1.13 20220218
ln

ddrconfig:7
LPDDR4X, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: -120ps, dqs1: -241ps, dqs2: -192ps, dqs3: -265ps,
tdqss: cs1 dqs0: -120ps, dqs1: -217ps, dqs2: -168ps, dqs3: -289ps,
U-Boot SPL board init

U-Boot SPL 2017.09 (Dec 09 2022 - 15:38:46)

unknown raw ID phN
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Card did not respond to voltage select!
mmc_init: -95, time 9
spl: mmc init failed with error: -95
Trying to boot from MMC1

SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 1
sha256,rsa2048:dev## Verified-boot: 1
+
## Checking atf-1 0x00040000 ... sha256(6204b6f381...) + OK
## Checking uboot 0x00a00000 ... sha256(9b5584889e...) + OK
## Checking fdt 0x00b38bd8 ... sha256(53436a3c19...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(5563d929da...) + OK
## Checking atf-3 0x0006a000 ... sha256(b04372ab0f...) + OK
## Checking atf-4 0xfdcd0000 ... sha256(b46eaa95b8...) + OK
## Checking atf-5 0xfdcce000 ... sha256(2f8839c803...) + OK
## Checking atf-6 0x00068000 ... sha256(6e9d32ba23...) + OK
## Checking optee 0x08400000 ... sha256(66bbd17352...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 173.543 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-365-gae7c295ca:derrick.huang
NOTICE:  BL31: Built : 15:37:13, May 17 2022
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    dfs DDR fsp_param[0].freq_mhz= 1056MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32

I/TC:
I/TC: OP-TEE version: 3.13.0-641-g4167319d3 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #8 Wed Mar 16 15:14:56 CST 2022 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9



U-Boot 2017.09 (Dec 09 2022 - 15:38:46 +0800), Build: jenkins-OneCloudFirmware1_AP_192.168.126.224-717

Model: Rockchip RK3568 Evaluation Board
PreSerial: 2, raw, 0xfe660000
DRAM:  4 GiB
Sysmem: init
Relocation Offset: ed340000
Relocation fdt: eb9f88a0 - eb9fecc8
CR: M/C/I

MMC:   dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0

Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
DM: v1


Starting kernel ...


I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[    0.000000] Linux version 6.1.92-ophub (root@fv-az2026-603) (aarch64-none-linux-gnu-gcc (Arm GNU Toolchain 13.2.rel1 (Build arm-13.7)) 13.2.1 20231009, GNU ld (Arm GNU Toolchain 13.2.rel1 (Build arm-13.7)) 2.41.0.20231009) #1 SMP Sat May 25 12:17:38 EDT 2024
